Goal Effect

Smart goalpost technology with LED lighting for instant goal confirmation

Problem

Before the introduction of VAR and goal line technology in soccer, goal decisions were often a point of dispute in soccer. Even with current technology, controversial moments still occur in the beautiful game.

Famous Example:

Luis Suárez's controversial "Hand of God" save in the 2010 World Cup against Ghana, which prevented a clear goal and changed the course of the match.

Key Issues

  • • Disputed goal decisions in soccer
  • • Limited visual cues for goal confirmation
  • • Fan confusion during controversial calls
  • • Need for enhanced referee assistance

Solution

Augment Video Assistant Refereeing (VAR) technology with high-tech sensor technology and LED lighting where goalposts and nets glow conspicuously whenever a ball flies past the goal line, bringing an additional cue to goal-counting.

This technology improves the accuracy of goal calls and enhances the fans' experience of the game by providing immediate visual feedback.

Key Features

  • • LED-enabled smart goalposts
  • • High-tech sensor integration
  • • Instant visual goal confirmation
  • • Enhanced fan experience
  • • VAR technology augmentation

Controversial Soccer Moments

Understanding the need for better goal detection technology

2010 FIFA World Cup

Uruguay vs Ghana Quarter-Final

Luis Suárez's deliberate handball on the goal line in the final minute of extra time prevented a certain goal for Ghana. This controversial moment, dubbed the "Hand of God" incident, highlighted the need for better goal detection technology.

Impact:
  • • Ghana missed the resulting penalty
  • • Uruguay advanced to semi-finals
  • • Sparked global debate about fair play
  • • Accelerated goal-line technology development
Luis Suarez controversial handball save

Luis Suárez's controversial handball save that prevented Ghana's goal

Goal Effect Technology

Goal Effect Visual Design Concept

Visual Design Concept

Conceptual visualization of the Goal Effect system showing LED integration and visual feedback mechanisms

Smart Goalpost Design

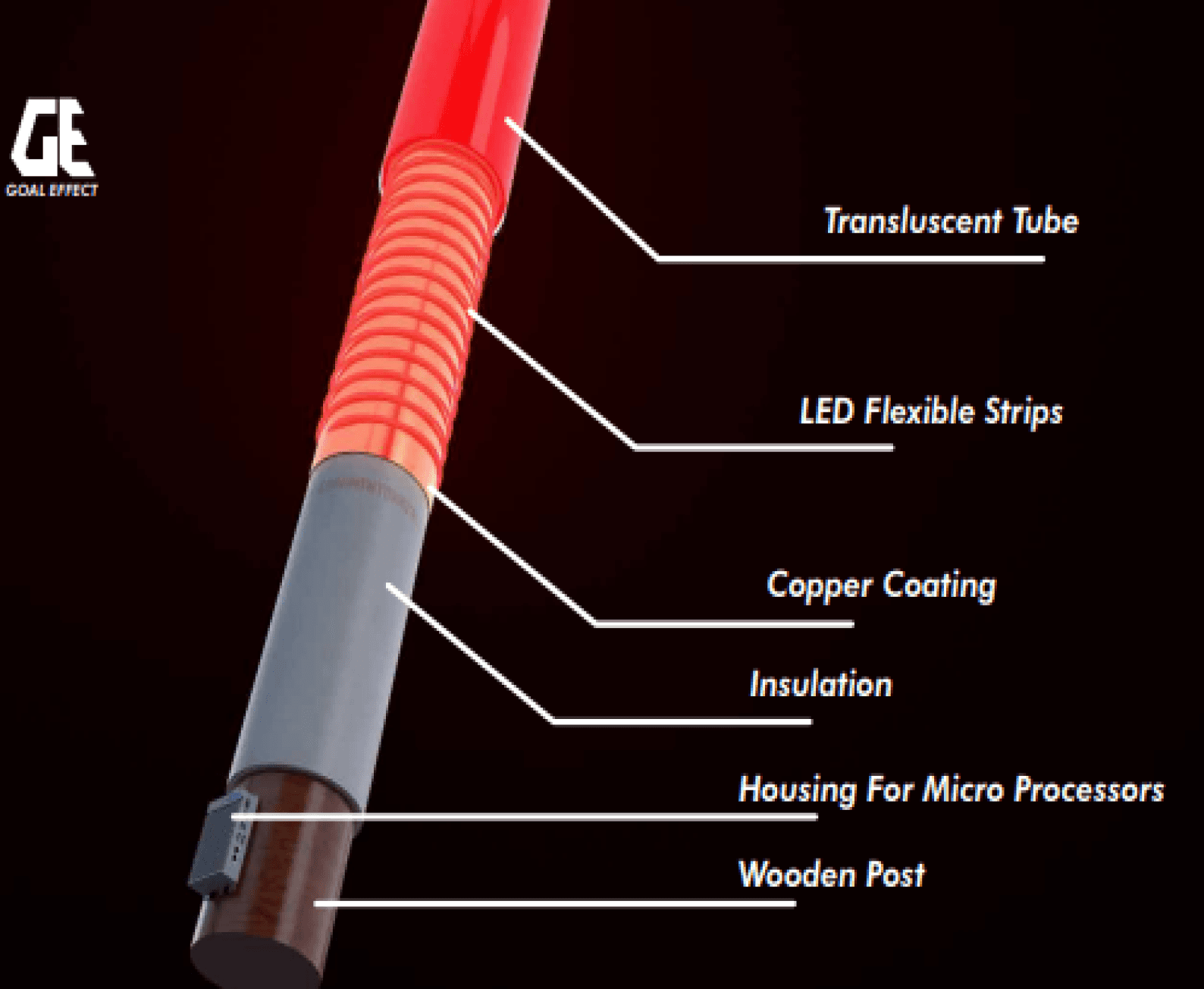

Smart Goalpost Design

Detailed design of the smart goalpost structure with integrated sensors and LED lighting system

Physical Prototype

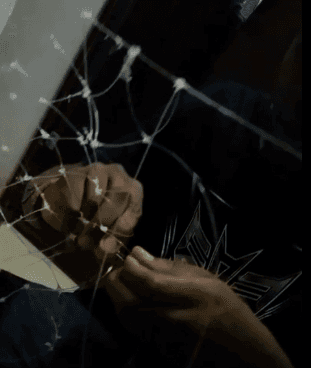

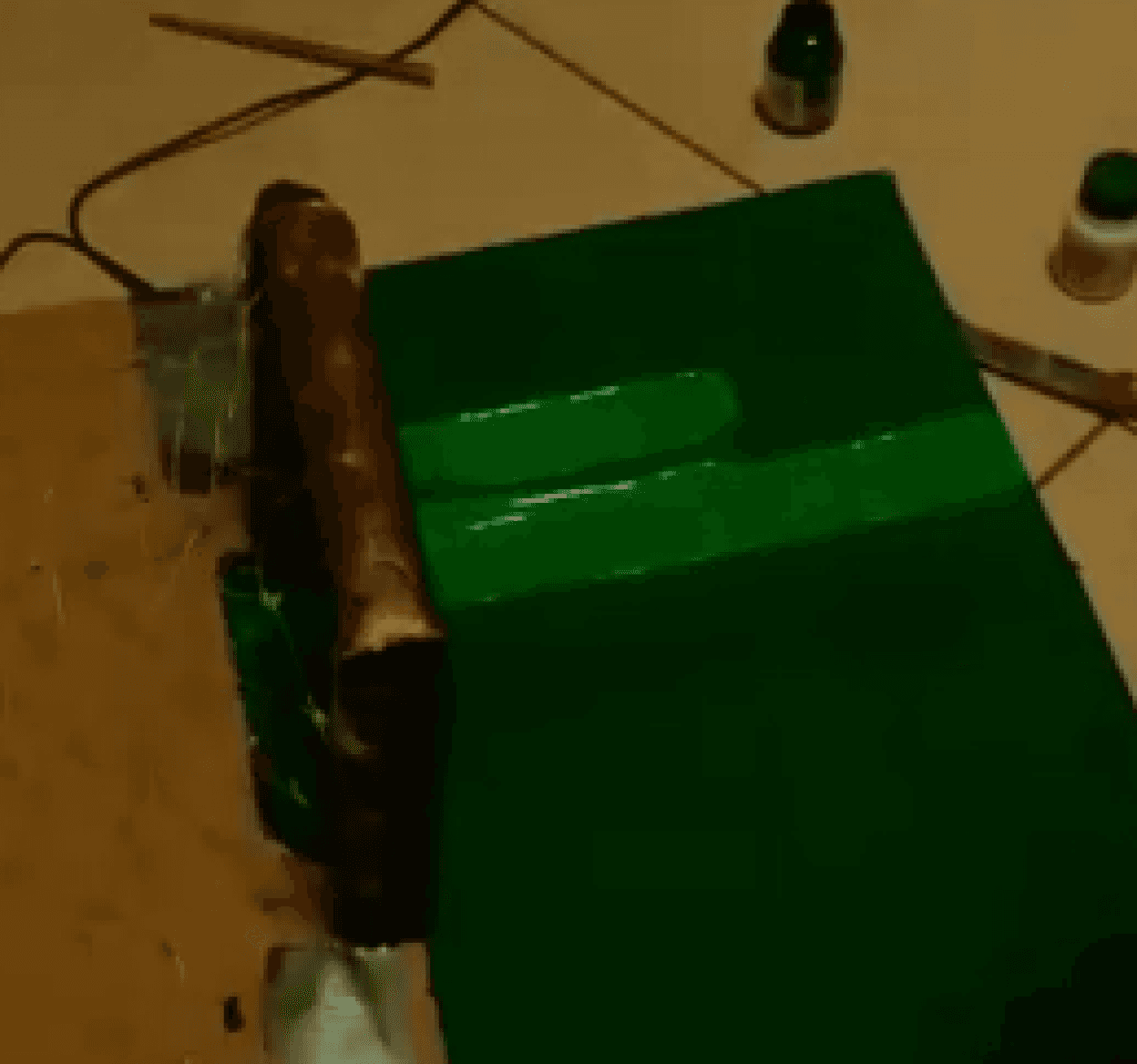

Physical Prototype

Working prototype of the smart goalpost system demonstrating the LED lighting technology

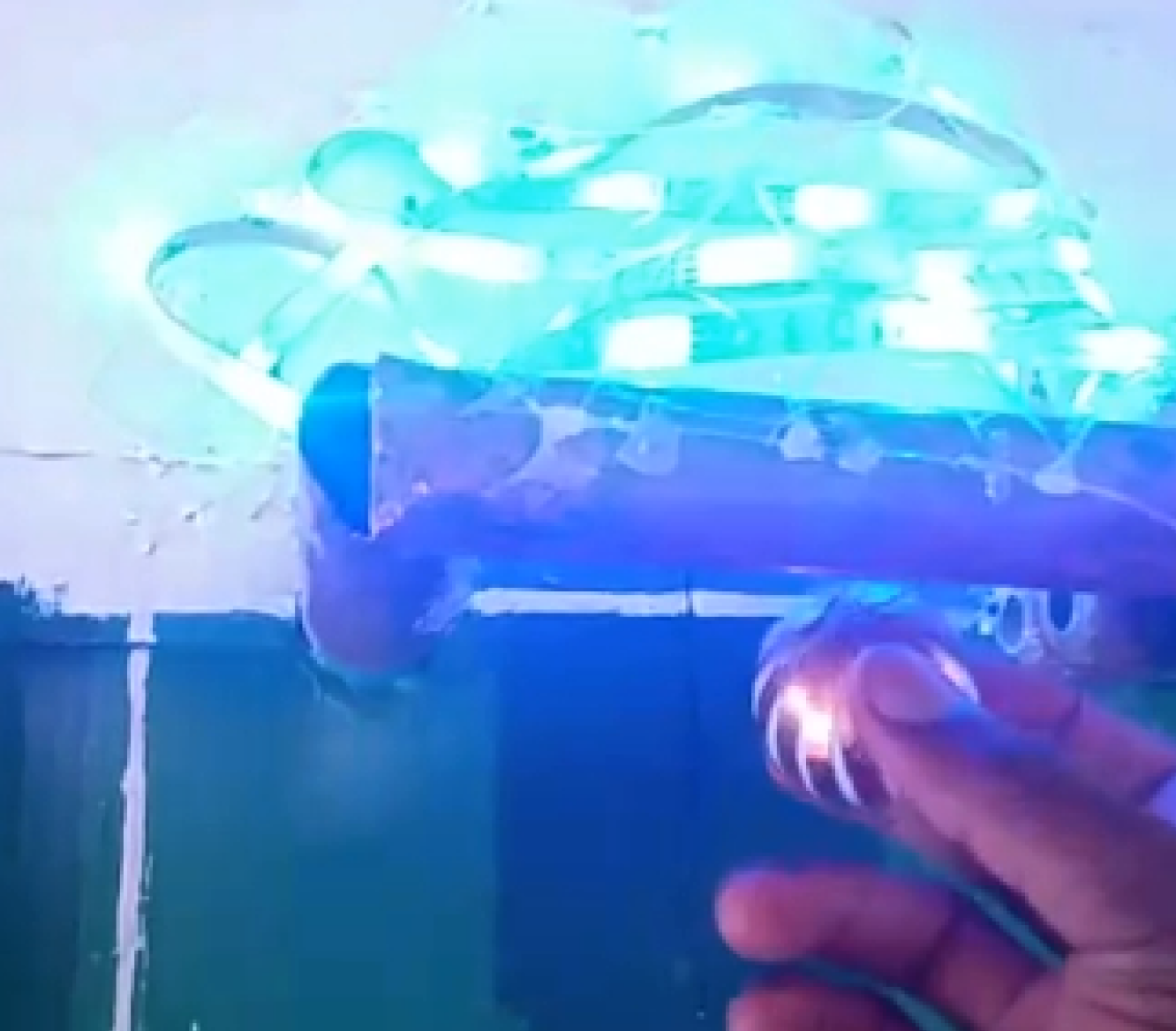

Prototype Testing

System Testing

Testing the prototype functionality and sensor accuracy for goal detection

Technology Components

⚡

LED Lighting System

Integrated LED lights that illuminate the goalpost and net when a goal is detected

📡

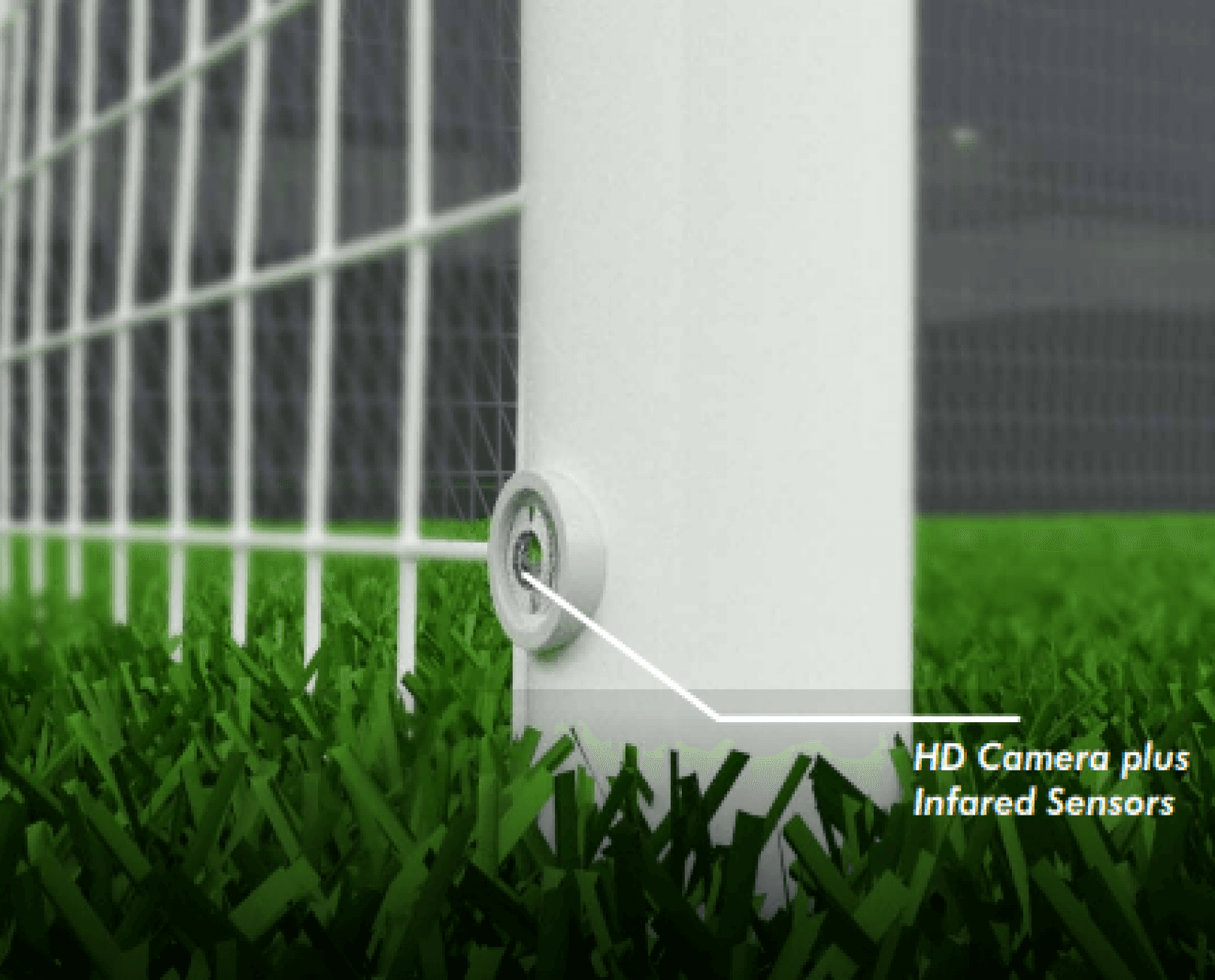

Sensor Technology

High-precision sensors that detect ball position relative to the goal line

🎯

VAR Integration

Seamless integration with existing VAR systems for enhanced accuracy

⚙️

Smart Processing

Real-time processing unit that triggers visual feedback instantly

👥

Fan Experience

Enhanced stadium experience with immediate visual goal confirmation

📊

Data Analytics

Comprehensive goal data collection for match analysis and statistics

Development Process

1

Problem Analysis

Studied controversial soccer moments and VAR limitations

2

Technology Design

Designed smart goalpost with integrated sensors and LEDs

3

Prototyping

Built physical prototype to test concept feasibility

4

Testing & Validation

Validated sensor accuracy and LED response timing

Technology Impact

Revolutionizing soccer through enhanced goal detection and fan experience

Instant
Visual Feedback
Enhanced
VAR Technology
Improved
Fan Experience
